The Badminton Court Shed is engineered to provide a robust and weather-resistant indoor structure for badminton courts and sports facilities. Designed with high-strength steel framing and quality roofing materials, it ensures player comfort and uninterrupted play in all weather conditions. The shed structure supports proper lighting, ventilation, and clear playing height as per badminton standards. Suitable for academies, schools, clubs, and sports complexes, it enhances facility usability throughout the year. Corrosion-resistant construction ensures long service life with minimal maintenance. Customizable dimensions allow single or multiple court installations. Ideal for professional training centers and recreational sports infrastructure development.

T/T,L/C,PayPal,Western Union,Cash,Cheque,Demand Draft

Key Attributes
Industry-specific Attributes
  • Shed Span Width 12–20 Meters
  • Shed Length 24–40 Meters
  • Clear Height 8–12 Meters
  • Structure Material Ms / PEB Steel Structure
  • Roof Sheet Thickness 0.45–0.60 Mm (Gi / PPGI)
  • Column Section 200–400 Mm ISMB / Built-Up Section
  • Purlin Type C / Z Purlin 2–3 Mm Thickness
Other Attributes
  • Wind Resistance Up To 150 Km/Hr
  • Lighting Provision Height 8–10 Meters
  • Ventilation Type Turbo Ventilator / Ridge Vent
  • Surface Finish Primer Coated / Painted / Powder Coated
  • Floor Coverage Area 300–800 Sq.M
  • Usage Indoor Badminton Court / Sports Academy
Slider Image
Slider Thumb

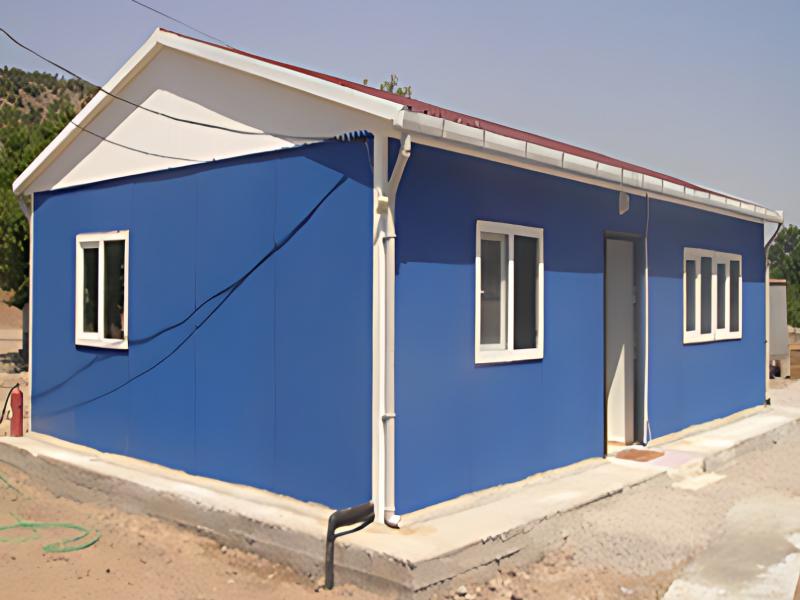

PUF Insulated Installation is engineered to create thermally efficient structures using high-quality polyurethane foam panels for walls and roofing. It ensures excellent temperature retention for cold rooms, storage facilities, and controlled environments. The interlocking panel system enables quick installation with airtight sealing and minimal thermal loss. Suitable for industrial, commercial, and food storage applications, it enhances energy efficiency and operational reliability. Corrosion-resistant outer layers provide durability in demanding environments. Customizable panel thickness supports different insulation requirements. Ideal for projects requiring fast, reliable, and long-lasting insulated infrastructure solutions.

T/T,L/C,PayPal,Western Union,Cash,Cheque,Demand Draft

Key Attributes
Industry-specific Attributes
  • Panel Thickness 30–120 Mm
  • Density Of Puf 38–42 Kg / M³
  • Thermal Conductivity 0.020–0.024 W / M·K
  • Outer Sheet Thickness 0.45–0.60 Mm (Gi / PPGI)
  • Panel Width 1000 Mm Effective
  • Panel Length 2000–12000 Mm
Other Attributes
  • Fire Rating B2 / B3 Grade
  • Temperature Resistance -40°C To +80°C
  • Sound Insulation 20–30 Db
  • Installation Type Wall / Roof / Cold Room / Clean Room
  • Joint Type Tongue & Groove / Cam Lock
Slider Image
Slider Thumb
Slider Thumb

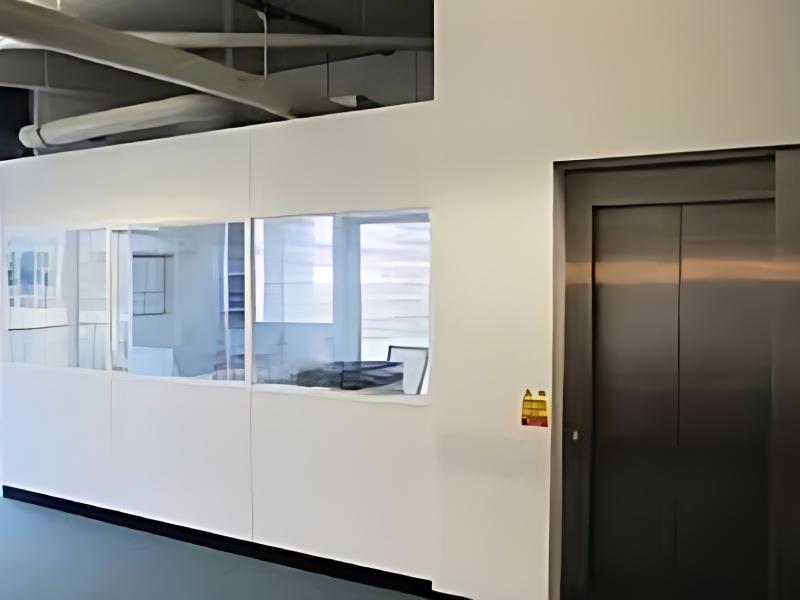

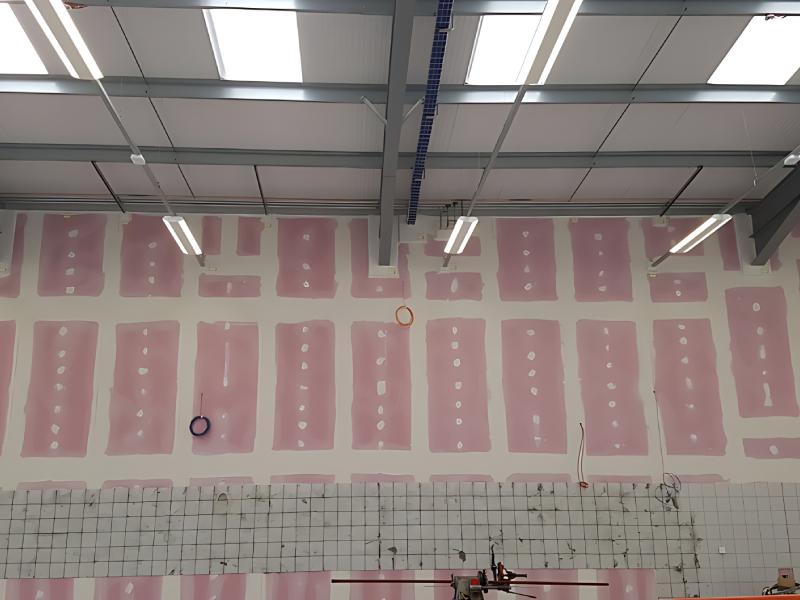

Fire Partition Board Installation is engineered to provide reliable fire-resistant separation within industrial, commercial, and institutional buildings. The boards are installed to create protective barriers that delay fire spread and enhance occupant safety. Built with fire-rated materials, the system meets safety standards and compliance requirements. Suitable for factories, warehouses, offices, and commercial facilities, it improves emergency preparedness and structural protection. The lightweight yet durable boards allow quick and efficient installation. Designed for minimal maintenance and long-term performance under demanding conditions. Ideal for projects requiring certified fire protection and safe partition solutions.

T/T,L/C,PayPal,Western Union,Cash,Cheque,Demand Draft

Key Attributes
Industry-specific Attributes
  • Board Thickness 8–20 Mm
  • Fire Rating 60–180 Minutes
  • Board Density 800–1200 Kg / M³
  • Panel Size 1200×2400 Mm
  • Thermal Conductivity 0.16–0.30 W / M·K
  • Sound Insulation 30–45 Db
Other Attributes
  • Frame Material Gi / Ms Stud Frame 0.8–1.2 Mm Thickness
  • Installation Height Up To 4 Meters (Standard)
  • Surface Finish Plain / Painted / Laminated
  • Joint Treatment Fire Sealant / Fiber Tape
  • Usage Fire Separation Walls / Industrial Units
Slider Image
Slider Thumb

Sandwich PUF Panels consist of a rigid polyurethane foam core sandwiched between pre-painted galvanized or stainless steel sheets. These panels are designed to provide superior thermal insulation, high load-bearing capacity, and long service life.They are widely used in cold storage units, prefabricated buildings, food processing plants, pharmaceutical facilities, and industrial sheds. The precision-engineered joint system ensures airtight sealing, fast installation, and excellent energy efficiency.

100 Square Meters

Mumbai Port

T/T,L/C,D/P D/A,Credit Card,PayPal,Cash

Key Attributes
Industry-specific Attributes
  • Core Material Polyurethane Foam (PUF)
  • Panel Thickness 30mm to 150mm
  • Facing Material PPGI
  • Fire Class Self-extinguishing
  • Thermal Conductivity ~0.022 W/mK
Other Attributes
  • Joint Type Tongue & Groove
  • Surface Finish Smooth
  • Density 40 ± 2 kg/m³
  • Sheet Thickness 0.4 to 0.6 mm
